Supertweeter top enclosures

Stl files for making adjustable supertweeter enclosure for horn type speakers based on Fostex design.
Current design fits all supertweeters of 60mm diameter.

Supertweeter enclosure down part.stl

Supertweeter enclosure upper part.stl

Rail.stl

3mm riser.stl

6mm riser.stl

10mm riser.stl

15mm riser.stl

20mm riser.stl

30mm riser.stl


Fostex recommended enclosures

Fostex enclosures which you can join with supertweeter

Supertweeters


Printing parts on FDM printer

  • Printing bed size - minimum 230x230mm,
    rail has to printed as one part diagonally,
    housings and risers can need supports depending
    on your printer possibilities and model orientation
  • Material - PLA or ABS

    NOTE - some sanding, filing can be necessary

For assembly of upper and lower housing you need

  • 4 pcs. M3x20 hex head socket screws
  • 4 pcs. M3 Nyloc nuts


For assembly of rail on top o a speaker you need

  • add on top of a speaker housing two pieces of 15mm thick birchwood plywood
    separated by 30mm (width of rail)
  • 3 pcs. of wood srews matching holes in rail

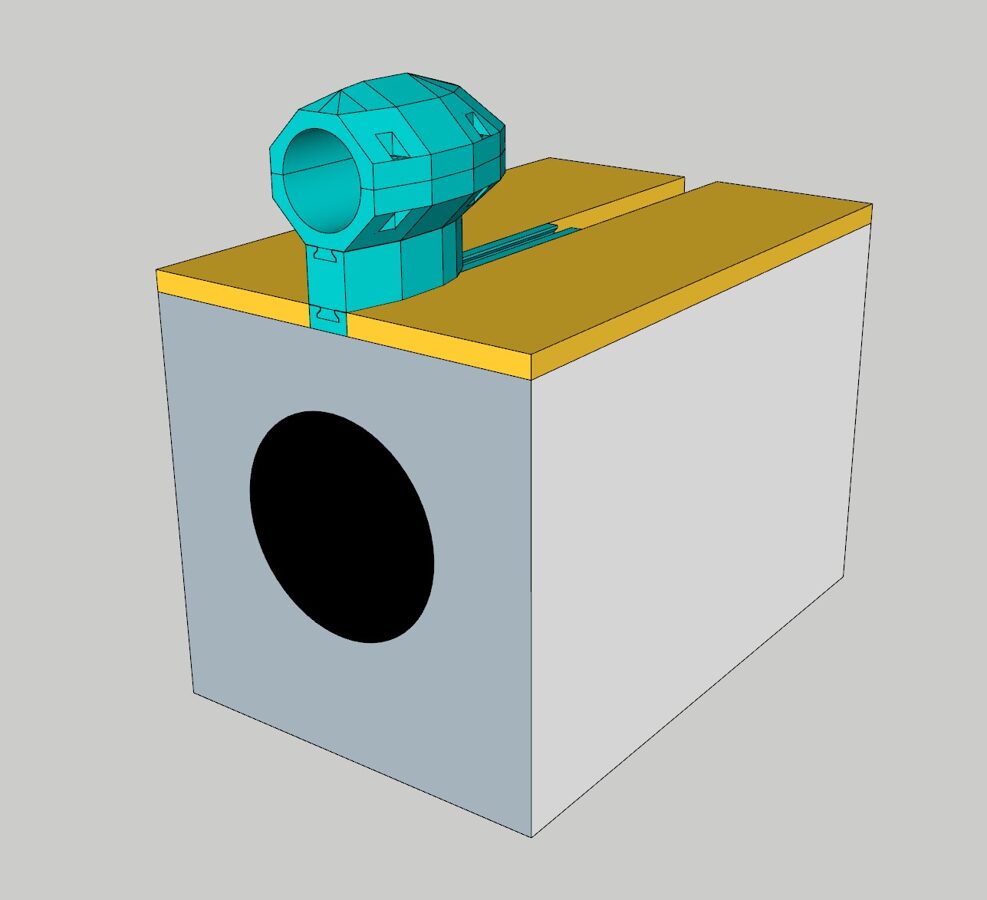

View with highest riser (30mm)
"Stealth" shape made to break every back soundwave.
